Sweet 16

The Sweet 16 profile is a powerful, compact uplight/downlight solution. With a single LED strip for downlighting and two for uplighting, Sweet 16 is ideal for boardrooms, reception counters and kitchen islands. Sweet 16 can be wired with two independent, dimmable circuits to achieve the perfect amount of light. Both wire and rod suspension options are available.

Features
  • Powerful direct/indirect lighting.
  • Made for kitchen islands, boardroom tables, reception counters, office spaces.
Additional Information
  • Customised lengths and configurations, made to measure.
  • New Zealand designed and made.
  • Uniform lighting (reduces or eliminates the appearance of LED ‘dots’ with opal diffuser).
  • Various LED strip colour temperature and wattage options.
  • Installation: Interior only.
  • Material: Aluminium body, polycarbonate diffuser, aluminium end caps.
  • Power Supply: 24V DC – remote driver options ranging from 6W up to 320W.
  • Dimming: Various options available including Casambi, DALI, 0-10V, DMX – please enquire.
Mounting Options
  • Rod suspended
  • Wall mounted
  • Wire suspended
Diffuser Options
  • Clear polycarbonate
  • Opal polycarbonate
Profile Finish Options
  • Natural silver anodised
    $item['profile_finish_option']
  • Mannex Appliance White powder coat
    $item['profile_finish_option']
  • Mannex Black powder coat
    $item['profile_finish_option']
  • Custom powder coat colours
    $item['profile_finish_option']

LED Strip Options

Super Series

Super Series
Our top-of-the-range and most versatile strip, suitable for almost any application.
Code
Watts per metre
Colour temp.
Lumens per metre
LEDs per metre
Max. length per feed
Protection
SUPER-03-27
SUPER-03-30
SUPER-03-40
3W
2700K
3000K
4000K
310
330
345
144
10M
IP20, IP54, IP67
SUPER-07-27
SUPER-07-30
SUPER-07-40
7W
2700K
3000K
4000K
760
800
840
144
10M
IP20, IP54, IP67
SUPER-14-27
SUPER-14-30
SUPER-14-40
14W
2700K
3000K
4000K
1520
1600
1680
144
6M
IP20, IP54, IP67
SUPER-20-27
SUPER-20-30
SUPER-20-40
20W
2700K
3000K
4000K
1955
2060
2160
126
7M
IP20, IP54
SUPER-26-27
SUPER-26-30
SUPER-26-40
26W
2700K
3000K
4000K
2400
2530
2650
126
5M
IP20, IP54
For IP54 versions, add "-IP54" to end of codes above. Example code SUPER-07-40-IP54.
For IP67 versions, add "-IP67" to end of codes above.
IP54 and IP67 version reduce above stated lumen figures by 5%.
Wattage and lumen tolerance +/- 10%. Colour temperature tolerance +/- 5%.
Download: Super Series LED Strip

Spec Series General

Spec Series General
Our general-purpose LED strip is a cost-effective solution for an array of interior and exterior uses including joinery.
Code
Watts per metre
Colour temp.
Lumens per metre
LEDs per metre
Max. length per feed
Protection
SPEC-9.6-30
SPEC-9.6-40
9.6W
3000K
4000K
700
720
120
5M
IP20, IP67
SPEC-14.4-30-140
SPEC-14.4-40-140
14.4W
3000K
4000K
1150
1180
140
5M
IP20, IP67
SPEC-15-30
SPEC-15-40
15W
3000K
4000K
1425
1500
126
5M
IP20, IP67
For IP67 versions, add “-IP67” to end of codes above. Example code: SPEC-14.4-30-140-IP67.
IP67 versions reduce above stated lumen figures by 5%.
Wattage and lumen tolerance +/- 10% . Colour temperature tolerance +/- 5%.
Download: Spec Series General LED Strip

Spec Series Long

Spec Series Long
Spec Series Long allows single lengths of strip of up to 20m long from a single feed.
Code
Watts per metre
Colour temp.
Lumens per metre
LEDs per metre
Max. length per feed
Protection
SPEC-9.6-30
SPEC-9.6-40
11W
3000K
4000K
690
710
120
20M
IP20
Wattage and lumen tolerance +/- 10% . Colour temperature tolerance +/- 5%.
Download: Spec Series Long LED Strip

Spec Series WIDE

Spec Series WIDE
Spec Series Wide is a perfect companion for our wider profiles. The dual-row of LED chips offers a wide distribution of light across wide diffusers.
Code
Watts per metre
Colour temp.
Lumens per metre
LEDs per metre
Max. length per feed
Protection
SPEC-28-30-240
SPEC-28-40-240
28W
3000K
4000K
1990
2050
240
5M
IP20
Wattage and lumen tolerance +/- 10% . Colour temperature tolerance +/- 5%.
Download: Spec Series Wide LED Strip

Spec Series Colour

Spec Series Colour
Spec Series Colour LED strips offer fixed colour options of red, green and blue.
Code
Watts per metre
Colour temp.
Lumens per metre
LEDs per metre
Max. length per feed
Protection
SPEC-9.6-R
SPEC-9.6-G
SPEC-9.6-B
9.6W
RED
GREEN
BLUE
240
720
180
120
5M
IP20, IP65
For IP65 versions, add “-IP65” to end of codes above. Example code: SPEC-14.4-30-140-IP65.
IP65 versions reduce above stated lumen figures by 5%.
Wattage and lumen tolerance +/- 10% . Colour temperature tolerance +/- 5%.
Download: Spec Series Colour LED Strip

Spec Series TUNEABLE WHITE

Spec Series TUNEABLE WHITE
Spec Series colour tuneable white LED strip offers super-close pitch and high-out tuneable white options from 1800K to 5000K
Code
Watts per metre
Colour temp.
Lumens per metre
LEDs per metre
Max. length per feed
Protection
SPEC-19.2 -CTUNE
SPEC-20 -CTUNE
19.2W
20W
1800-5000K
1800-5000K
1200 - 1500
1500 - 1850
288
196
5M
5M
IP20
Wattage and lumen tolerance +/- 10% . Colour temperature tolerance +/- 5%.
Download: Spec Series Tuneable White

Spec Series RGB

Spec Series RGB
Spec Series RGB LED strip is a unique, close-pitch, powerful RGB strip.
Code
Watts per metre
Colour temp.
Lumens per metre
LEDs per metre
Max. length per feed
Protection
SPEC-15-RGB
15W
Red/Blue/Green
1090
120
5M
IP20, IP67
For IP67 versions, add “-IP67” to end of codes above. Example code: SPEC-14.4-30-140-IP67.
IP67 versions reduce above stated lumen figures by 5%.
Wattage and lumen tolerance +/- 10% . Colour temperature tolerance +/- 5%.
Download: Spec Series RGB LED Strip

Spec Series RGBW

Spec Series RGBW
Spec Series RGBW is a high-density RGBW strip with a pitch of only 8.3m.
Code
Watts per metre
Colour temp.
Lumens per metre
LEDs per metre
Max. length per feed
Protection
SPEC-14.4-RGB- 9.6-30
14.4W RGB, 9.6W White
RGB +3000K
810 White
120
5M
IP20, IP65
For IP65 versions, add “-IP65” to end of codes above. Example code: SPEC-14.4-RGB-9.6-30-IP65.
IP65 versions reduce above stated lumen figures by 5%.
Wattage and lumen tolerance +/- 10% . Colour temperature tolerance for white LEDs +/- 5%.
Download: Spec Series RGBW LED Strip

SPEC SERIES RGB+TWIN WHITE

SPEC SERIES RGB+TWIN WHITE
Spec Series RGBW is a high-density RGBW strip with a pitch of only 8.3m.
Code
Watts per metre
Colour temp.
Lumens per metre
LEDs per metre
Max. length per feed
Protection
SPEC-15-RGB-25-2X30
SPEC-15-RGB-25-2X40
15W RGB, 25W White
RGB +3000K
RGB+4000K
1990 White
2100 White
4M
IP20, IP65
For IP65 versions, add “-IP65” to end of codes above. Example code: SPEC-15-RGB-25-2X30-IP65.
IP65 versions reduce above stated lumen figures by 5%.
Wattage and lumen tolerance +/- 10% . Colour temperature tolerance for white LEDs +/- 5%.
Download: Spec Series RGB+Twin White LED Strip

Joining and Mounting Accessories

Straight joiner

JN-ST-6

90 degree joiner

JN-90-6

Cable base 60, recessed

CB-S16-60-R-S (silver) / CB-S16-60-R-W (white) / CB-S16-60-R-S-B (black)

Cable base 80, surface mount

CB-BEW-80-SM-S (silver) / CB-BEW-80-SM-W (white) / CB-BEW-80-SM-B (black)

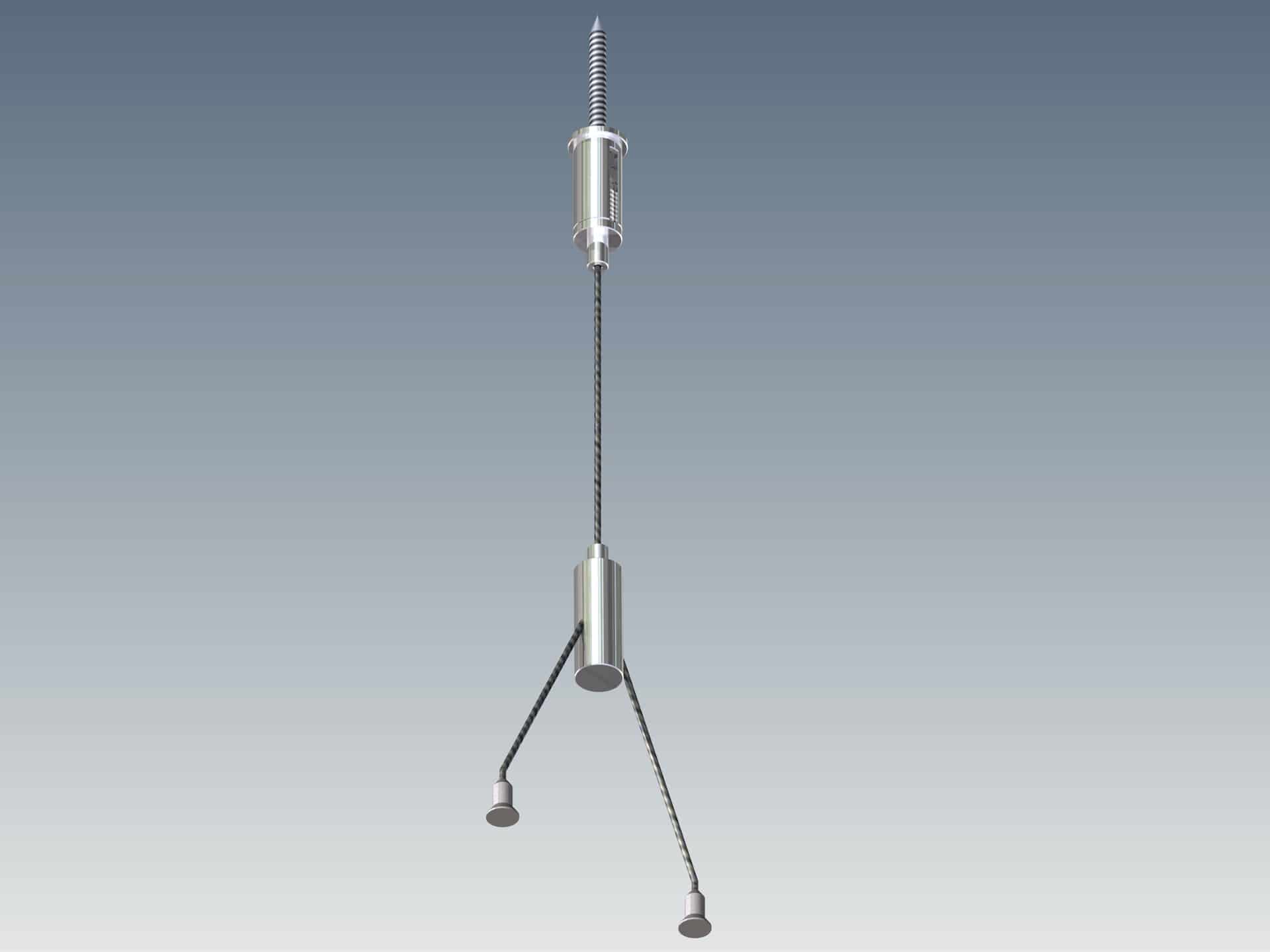

Wire suspension

SWK-V-1M (1 metre) / SWK-V-2M (2 metre) / SWK-V-4M (4 metre)

Suspension rod – 0.5m, 1m, 2m

ROD-0.5M / ROD-1M / ROD-2M

Recessed rod suspension kit (rod not incl.)

SRK-3-S (Silver) / SRK-3-W (White) / SRK-3-B (Black)

Surface mounted rod suspension kit (rod not incl.)

SRK-8-S (Silver) / SRK-8-W (White) / SRK-8-B (Black)

Wall bracket

WB-S16

Specification Sheet

Sweet 16

Installation Instructions

Wire Suspended
Wall Mounted
Rod Suspended

Photometric File

S16 - SUPER-20-40 OPAL DOWN, 2XSUPER-14-40 CLEAR UP

BIM Files

Sweet 16 ArchiCad
Sweet 16 Revit
