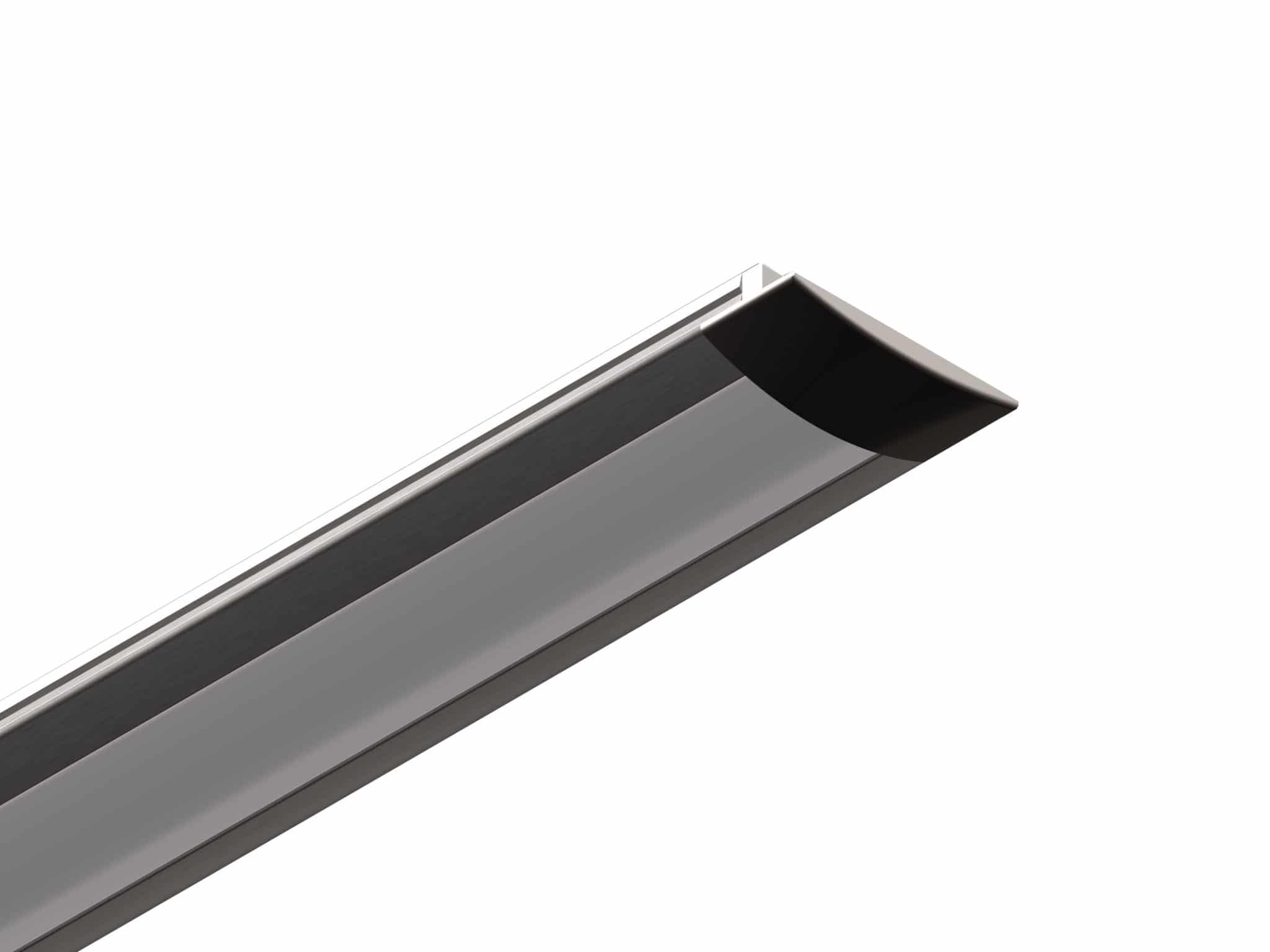

Trim
Tim 7

Trim Tim 7 is the slimmer cousin of Trim Tim 13. Designed for ultra-thin joinery where a shallow recess is critical, Trim Tim 7 offers the same benefits as Trim Tim 13 including ribs for friction-fitting but in a smaller package.

Features
  • Ribs for friction-fitting into rebate.
  • Made for task lighting in kitchen cabinetry, lighting for shelving or display units.
  • Only 7mm deep for recessing into ultra-thin joinery.
Additional Information
  • Customised lengths and configurations, made to measure.
  • New Zealand designed and made.
  • Uniform lighting (reduces or eliminates the appearance of LED ‘dots’ with opal diffuser).
  • Various LED strip colour temperature and wattage options.
  • Installation: Interior only.
  • Material: Aluminium body, polycarbonate diffuser, AES plastic end caps.
  • Power Supply: 24V DC – remote driver options ranging from 6W up to 320W.
  • Dimming: Various options available including Casambi, DALI, 0-10V, DMX – please enquire.
Mounting Options
  • Recessed
Diffuser Options
  • Clear polycarbonate
  • Opal polycarbonate
Profile Finish Options
  • Natural silver anodised
    $item['profile_finish_option']
  • Mannex Appliance White powder coat
    $item['profile_finish_option']
  • Mannex Black powder coat
    $item['profile_finish_option']
  • Custom powder coat colours
    $item['profile_finish_option']

LED Strip Options

Super Series

Super Series
Our top-of-the-range and most versatile strip, suitable for almost any application.
Code
Watts per metre
Colour temp.
Lumens per metre
LEDs per metre
Max. length per feed
Protection
SUPER-03-27
SUPER-03-30
SUPER-03-40
3W
2700K
3000K
4000K
310
330
345
144
10M
IP20, IP54, IP67
SUPER-07-27
SUPER-07-30
SUPER-07-40
7W
2700K
3000K
4000K
760
800
840
144
10M
IP20, IP54, IP67
SUPER-14-27
SUPER-14-30
SUPER-14-40
14W
2700K
3000K
4000K
1520
1600
1680
144
6M
IP20, IP54, IP67
Wattage and lumen tolerance +/- 10%. Colour temperature tolerance +/- 5%.
Download: Super Series LED Strip

Spec Series General

Spec Series General
Our general-purpose LED strip is a cost-effective solution for an array of interior and exterior uses including joinery.
Code
Watts per metre
Colour temp.
Lumens per metre
LEDs per metre
Max. length per feed
Protection
SPEC-9.6-30
SPEC-9.6-40
9.6W
3000K
4000K
700
720
120
5M
IP20
SPEC-14.4-30-140
SPEC-14.4-40-140
14.4W
3000K
4000K
1150
1180
140
5M
IP20
SPEC-15-30
SPEC-15-40
15W
3000K
4000K
1425
1500
126
5M
IP20
Wattage and lumen tolerance +/- 10% . Colour temperature tolerance +/- 5%.
Download: Spec Series General LED Strip

Spec Series Long

Spec Series Long
Spec Series Long allows single lengths of strip of up to 20m long from a single feed.
Code
Watts per metre
Colour temp.
Lumens per metre
LEDs per metre
Max. length per feed
Protection
SPEC-9.6-30
SPEC-9.6-40
11W
3000K
4000K
690
710
120
20M
IP20
Wattage and lumen tolerance +/- 10% . Colour temperature tolerance +/- 5%.
Download: Spec Series Long LED Strip

Spec Series Slim

Spec Series Slim
Spec Series Slim LED strips are perfect with our shallow profile for dot-free lines of light.
Code
Watts per metre
Colour temp.
Lumens per metre
LEDs per metre
Max. length per feed
Protection
SPEC-9.6-30-SLIM
SPEC-9.6-40-SLIM
9.6W
3000K
4000K
785
810
300
5M
IP20, IP65
SPEC-14.4-30-SLIM
SPEC-14.4-40-SLIM
14.W
3000K
4000K
1050
1080
300
5M
IP20
For IP65 versions, add “-IP65” to end of codes above. Example code: SPEC-9.6-30-SLIM-IP65.
IP65 versions reduce above stated lumen figures by 5%.
Wattage and lumen tolerance +/- 10% . Colour temperature tolerance +/- 5%.
* IP65 version is not “dot-free” in ‘Downhill Dan 10, ‘Tiny Tim 11’ or ‘Trim Tim 7’.
Download: Spec Series Slim LED Strip

Spec Series Colour

Spec Series Colour
Spec Series Colour LED strips offer fixed colour options of red, green and blue.
Code
Watts per metre
Colour temp.
Lumens per metre
LEDs per metre
Max. length per feed
Protection
SPEC-9.6-R
SPEC-9.6-G
SPEC-9.6-B
9.6W
RED
GREEN
BLUE
240
720
180
120
5M
IP20
Wattage and lumen tolerance +/- 10% . Colour temperature tolerance +/- 5%.
Download: Spec Series Colour LED Strip

Spec Series TUNEABLE WHITE

Spec Series TUNEABLE WHITE
Spec Series colour tuneable white LED strip offers super-close pitch and high-out tuneable white options from 1800K to 5000K
Code
Watts per metre
Colour temp.
Lumens per metre
LEDs per metre
Max. length per feed
Protection
SPEC-19.2 -CTUNE
SPEC-20 -CTUNE
19.2W
20W
1800-5000K
1800-5000K
1200 - 1500
1500 - 1850
288
196
5M
5M
IP20
Wattage and lumen tolerance +/- 10% . Colour temperature tolerance +/- 5%.
Download: Spec Series Tuneable White

Spec Series RGB

Spec Series RGB
Spec Series RGB LED strip is a unique, close-pitch, powerful RGB strip.
Code
Watts per metre
Colour temp.
Lumens per metre
LEDs per metre
Max. length per feed
Protection
SPEC-15-RGB
15W
Red/Blue/Green
1090
120
5M
IP20
Wattage and lumen tolerance +/- 10% . Colour temperature tolerance +/- 5%.
Download: Spec Series RGB LED Strip

Spec Series RGBW

Spec Series RGBW
Spec Series RGBW is a high-density RGBW strip with a pitch of only 8.3m.
Code
Watts per metre
Colour temp.
Lumens per metre
LEDs per metre
Max. length per feed
Protection
SPEC-14.4-RGB- 9.6-30
14.4W RGB, 9.6W White
RGB +3000K
810 White
120
5M
IP20
Wattage and lumen tolerance +/- 10% . Colour temperature tolerance for white LEDs +/- 5%.
Download: Spec Series RGBW LED Strip

Joining and Mounting Accessories

Straight joiner

JN-ST

90 degree joiner

JN-90

Specification Sheet

Trim Tim 7

Installation Instructions

Recessed

BIM Files

Trim Tim 7 ArchiCad
Trim Tim 7 Revit
